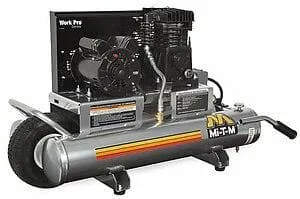

8-Gallon Single Stage Electric Air Compressor - AM1-PE15-08WP
The high performing Work Pro® Series is offered in an 8-gallon electric or gas-driven air compressor. Available as a single or two-stage compressor, it can power everything from impact wrenches and nail guns to paint sprayers and staplers.
Compressor Pump:Splash oil lubricated aluminum crankcase · Stainless-steel braided discharge hose · Oil level sight indicator
Motor:Thermal overload motor protection
Frame:Powder coated 8-gallon twin tank receivers · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard · 10-inch flat-free tire
Components:Regulator and two gauges for tank and outlet pressure · Drain and pressure relief valves · Fly wheel · Industrial-grade pressure switch
Specifications
CFM @ 90 PSI
7.3
Horsepower/Motor
1.5 HP, 115V, 13.2A
Compressor
Single Stage, Aluminum
Tank Size
8 gallon
Plug Type
NEMA 5-15P
Weights & Dimensions
Net Weight
140.00 lbs.
Shipping Weight
160.00 lbs.
Length
44.50 in.
Width
18.50 in.
Height
25.00 in.
